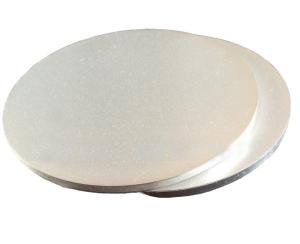

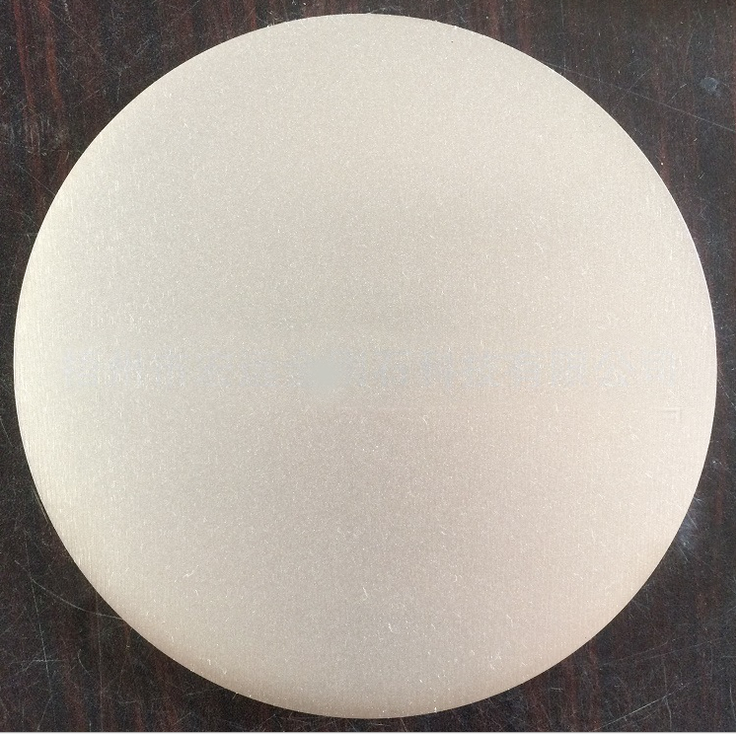

8 Degree Angle Fiber Optic Materials Diamond Polishing Pad Diamond Grinding Disc
Diamond grinding disc, special product for four-angle grinding machine. It is made of high-strength diamond plating with a smooth surface and no floating sand. In particular, the 1500# fine grinding disc has uniform sand and is easy to operate. Used in the processing and grinding of brittle and superhard materials such as ceramics, cemented carbide, sapphire and fiber.
It can be used for APC fiber jumper four-angle grinder to open 8 degree angle, which can effectively guarantee the consistency of product angle, accurate angle and strong cutting force.
Feature:
Special designed for polishing spherical surface of fiber connectors
Surface hardness flat and even
100% tested for hardness and parallelism A5
Good wear resistance, the repeatability can reach 30000 times at least
Good for 100% 3D test
Advantage
1. Suitable for fiber connector grinding, the connector includes ceramic ferrule, MTP, MPO and other non-standard connectors;
2. Widely used in ordinary four-angle pressure grinder and Seiko technology SFP-550 series grinder;
3. There are many different degrees and thicknesses for customers to choose from;
4. The surface of the pad is smooth and smooth, and the flatness is 2-5um;
5. Helps improve fiber endface yield and 3D yield.
6. open 8 degree angle for APC ferrule, which can effectively guarantee the consistency of product angle
Application:
- For polishing many kinds of fiber optic connectors, such as fiber optic ferrules of SC, LC, ST, FC .
- Applied in the following polishing machines:Squared type Fiber Optic Splicing Turmeric Polishing Machine----Central Pressurized Fiber optic polishing machine.
